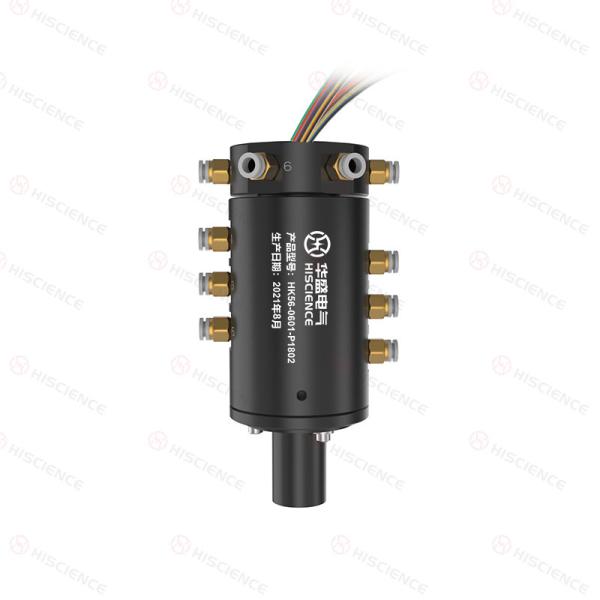

Rotary Unions 6 Passages with 18 Circuits 2A
Product Description:
Features:
- Versatile Signal Transmission: The Rotary Union with 18 circuits and a current rating of 2A offers versatile signal transmission capabilities. With eighteen independent circuits, it provides flexibility for simultaneous transfer of various signals, including control signals, data, or low-power electrical currents. This versatility makes it suitable for applications that require multi-signal transmission in industries such as automation, robotics, or packaging.
- Compact Design: Despite its high circuit capacity, the Rotary Union is designed to be compact, allowing for easy integration into space-constrained environments. Its compact size enables seamless installation in machinery, equipment, or systems where space is limited. The compact design also ensures efficient signal transmission and minimizes any potential signal loss or interference.
- Reliable Performance: The Rotary Union is engineered to deliver reliable performance in demanding applications. Its precise construction and high-quality materials ensure optimal signal integrity and minimize electrical losses during signal transmission. This reliability ensures consistent and accurate data transfer, precise control signal transmission, and stable power connections, contributing to the overall efficiency and effectiveness of the system.
Typical Application:
- Packaging Equipment: Electrical and Pneumatic Rotary Unions are utilized in packaging machinery for transferring power and pneumatic signals to control actuators, sensors, and pneumatic cylinders. They enable precise and synchronized movements, ensuring efficient packaging operations.
- Printing and Labeling Machines: Rotary Unions play a crucial role in printing and labeling machines by enabling the transfer of power, control signals, and compressed air. They facilitate the precise movement of print heads, label applicators, and other printing or labeling components.
- Utomated Assembly Systems: Electrical and Pneumatic Rotary Unions are employed in automated assembly systems for transferring power and control signals to control robotic arms, actuators, and other assembly equipment. They ensure precise and synchronized assembly operations.
Specifications:
| Electrical& Electronics |
| NO.of Circuits | 18 / 2A |
| Lead Wire Size | AWG26#Teflon Insulated |
| Voltage | 240VAC/DC |
| Insulation Resistance | ≥300MΩ/300VDC |
| Dynamic Contact Resistance | ≤35MΩ |
| Mechanical Parameter |
| Lead Length | Stator:250mm Rotor :250mm |
| Working Speed | 0~100RPM |
| Working Humidity | ≤ 70%RH |
| Working Temperature | -30℃～+80℃ |
| Precious Metal | Precious Metal |
| Housing Material | Engineering Plastics/ Metals(optional) |
| Pneumatic Parameter |
| Passages | 6 |
| Connection Thread Size | G1/8" |
| Pressure | -100Kpa~1Mpa |
| Transmitting media | Compressed Air |
| Rotating Speed | 0~100RPM |
| Working Temperature | -30℃～+80℃ |
Drawing for HK56-0601-P1802:
FAQ:
Are there options for compact or space-constrained applications?
Yes, there are compact Rotary Union designs available for applications with limited space. These units are designed to have a smaller footprint while still providing reliable fluid or gas transfer.
Can Rotary Unions be used in renewable energy applications?
Yes, Rotary Unions can be used in renewable energy applications such as wind turbines or solar tracking systems. They enable the transfer of hydraulic fluids or gases for control mechanisms or lubrication systems.
What certifications or standards should I look for when selecting Rotary Unions?
When selecting Rotary Unions, it is advisable to consider certifications or standards that are relevant to your industry or application. This may include ISO certifications, explosion-proof ratings, or specific industry standards.
